Sidelit Square ceiling lamps 3CCT

1.Material:ABS+PS

2.Elegant design Long life and energy saving

3.Easy installation UGR<19 and UGR <23

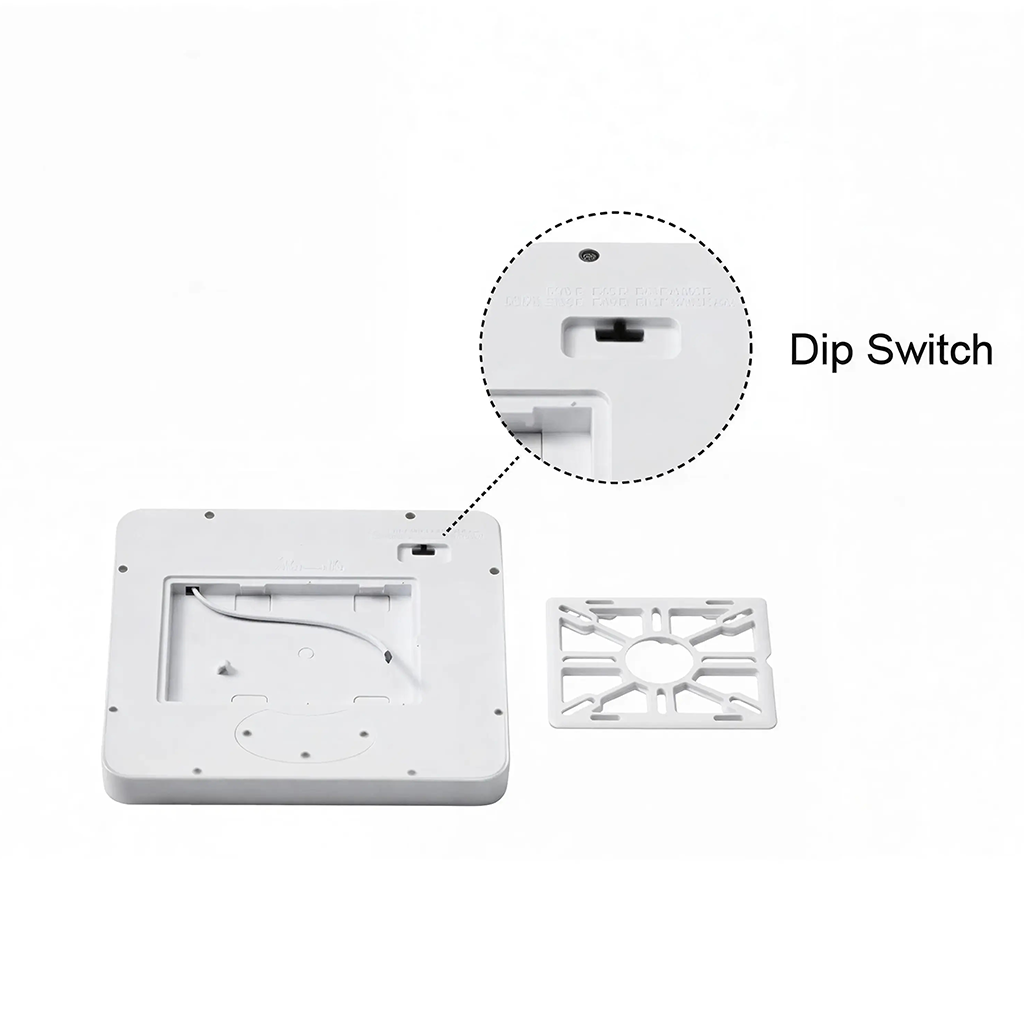

4.3CCT by DIP Switch + wall switch to change

Model JK-CL-3CCT-18W-SQ JK-CL-3CCT-24W-SQ JK-CL-3CCT-32W-SQ JK-CL-3CCT-40W-SQ JK-CL-3CCT-50W-SQ JK-CL-3CCT-60W-SQ
Voltage (V) 220-240V 220-240V 220-240V 220-240V 220-240V 220-240V
Wattage 18W 24W 32W 40W 50W 60W
Size (mm) 230*230*23 300*300*25 400*400*25 500*500*25 300*1200*28 600*900*28
Lumen Efficacy 85lm/W 85lm/W 85lm/W 85lm/W 85lm/W 85lm/W
3CCT 3000K-4000K-6500K 3000K-4000K-6500K 3000K-4000K-6500K 3000K-4000K-6500K 3000K-4000K-6500K 3000K-4000K-6500K
Beam Angle 160° 160° 160° 160° 160° 160°
PF 0.5 0.5 0.5 0.5 0.5 0.5
IP Rating 20/42 20/42 20/42 20/42 20/42 20/42
CRI 80 80 80 80 80 80
Material ABS+PS ABS+PS ABS+PS ABS+PS ABS+PS ABS+PS
Life of Product 30000 Hrs 30000 Hrs 30000 Hrs 30000 Hrs 30000 Hrs 30000 Hrs
